Product Details:
|
Heating Capacity, Part Load/full Load (kW): | 4.4/10.3 | Fuel Consumption, Part Load/full Load (l/h): | 0.51/1.29 |
---|---|---|---|
Working Voltage (V): | 12/24 | Power Consumption, Part Load/full Load (W): | 74.4/104.4 |
Weight (kg): | 7 | Outline Dimensions (L X W X H) (mm): | 435X212X177 |
Operating Ambient Temperature (℃): | -41 To +55 | Storage Temperature (℃): | -55 To +70 |
Key Word 1: | Preheating Diesel Engine Heater | Key Word 2: | Control Valve Fit New Hydraulic Heater |
Key Word 3: | Truck Coolant Heater | Product: | Preheating Diesel Engine Control Valve Fit New Hydraulic Heater Control Truck Coolant Heater |
High Light: | rv diesel block heater HLN,small diesel heater for rv HLN,hydraulic tank coolant heater 10kW HLN |

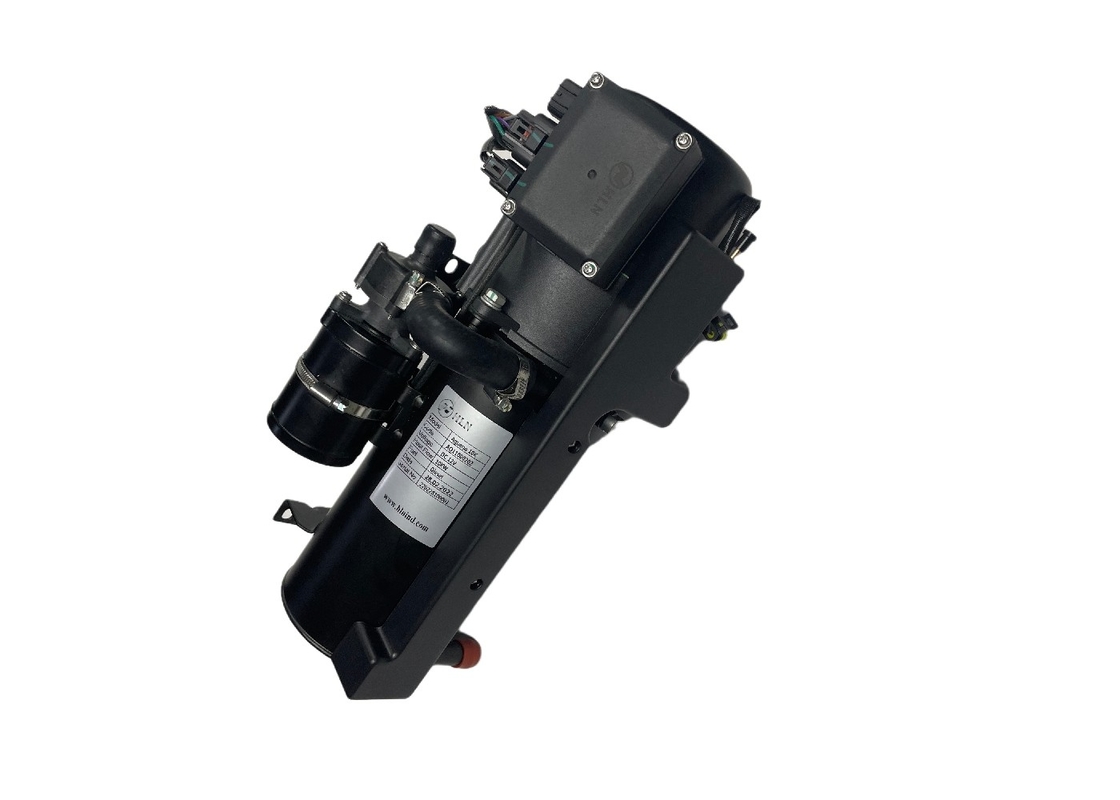

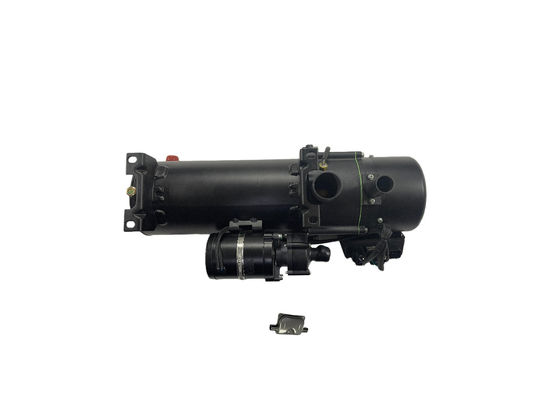

HLN Aquano 10k Coolant heater
Preheating Diesel Engine Control Valve Fit New Hydraulic Heater Control Truck Coolant Heater
Specifications
Heating capacity, part load/full load (kW) | 4.4/10.3 |
Fuel consumption, part load/full load (l/h) | 0.51/1.29 |
Working voltage (V) | 12/24 |
Power consumption, part load/full load (W) | 74.4/104.4 |
Weight (kg) | 7 |
Outline dimensions (L x W x H) (mm) | 435x212x177 |
Operating ambient temperature (℃) | -41 to +55 |
Storage temperature (℃) | -55 to +70 |
Features
An HLN coolant heater integrates seamlessly into the engine coolant loop, providing an independent heating source. Within the HLN coolant heater system, the metering pump connects to the existing fuel tank, supplies diesel fuel to the heater for combustion. The circulation pump draws engine coolant into the heater. The heater heats up the coolant, and the coolant continues to warm up the engine block to avoid cold start, or keep the engine operating in a desired temperature. As a result, engine wear is reduced, and the vehicle cabin can be warm without idling the engine.
HLN focuses on continuously improving the heater quality and pushing it to the limit. The company finished a heater high attitude test above 5,000 meters on the Tibetan Plateau. Both air heaters and coolant heaters went through the tests. A total of five testes points were taken, and at a highest elevation of 5,235 meters. (The five test points were at 2,780m, 3,660m, 4,540m, 4,780m, and 5,235m.) At all test points, both the air heaters and coolant heaters can ignite and operate smoothly. The high elevation test is only one of a serious of tests that HLN performs on its heaters to guarantee the heaters performance
The 10kw heater is a multi-function of environmental protective and highly intelligent remote control parking heater. The main heater is a small fuel furnace controlled by a single-chip microprocessor. Its medium circulation system is connected with the cooling system of an automobile engine. In such a way, the cooling liquid for the engine can be heated by the heater while the engine is not working. The heater not only can heats compartment and restroom to a proper temperature but also preheats medium and large engines, so as to avoid cold starting and increase the service life of engines. Heaters can offer comfortable temperature during the set period. This allows for maximum relaxation and recuperation of the driver, obviously increased the safety of driver and cargo. Heaters can avoid idling and cutting the cost, carbon dioxide and fuel consumption can be reduced. Make a great contribution to environment protection. Car heater fun.
Product Characteristics
· Delivery terms can be customized.
· Both as original and installation equipment.
· Work at any time even in the low ambient temperature.
· Eliminate idling and reduce fuel consumption.
F&Q:
We are a professional manufacture for diesel heater with 40 years of expertise and experience.
Surely, we are welcome to cooperate with OEM service.
Yes, we have quality warranty under normal condition. Please contact us for details
Comparing with other manufacturers, the advantages of our Heater are experience, quality, capacity and price.
Firstly, we have 40 years of experience and expertise to dominate this field. We are the earliest manufacturer in China.
Secondly, the quality of our heater is the best in China and the top 3 in the world, and we are the only Chinese heater company in the OEM equipment supplier field for world's top players such as FAW Group, Sany Group and Zoomlion.
Thirdly, we produced and sold 200 thousand machines last year as the No.1 sales volume in China.
Finally, our quality and technology is closed to Webasto and Eberspacher but the price of our product is much more reasonable, not only the heater but also the accessories.
