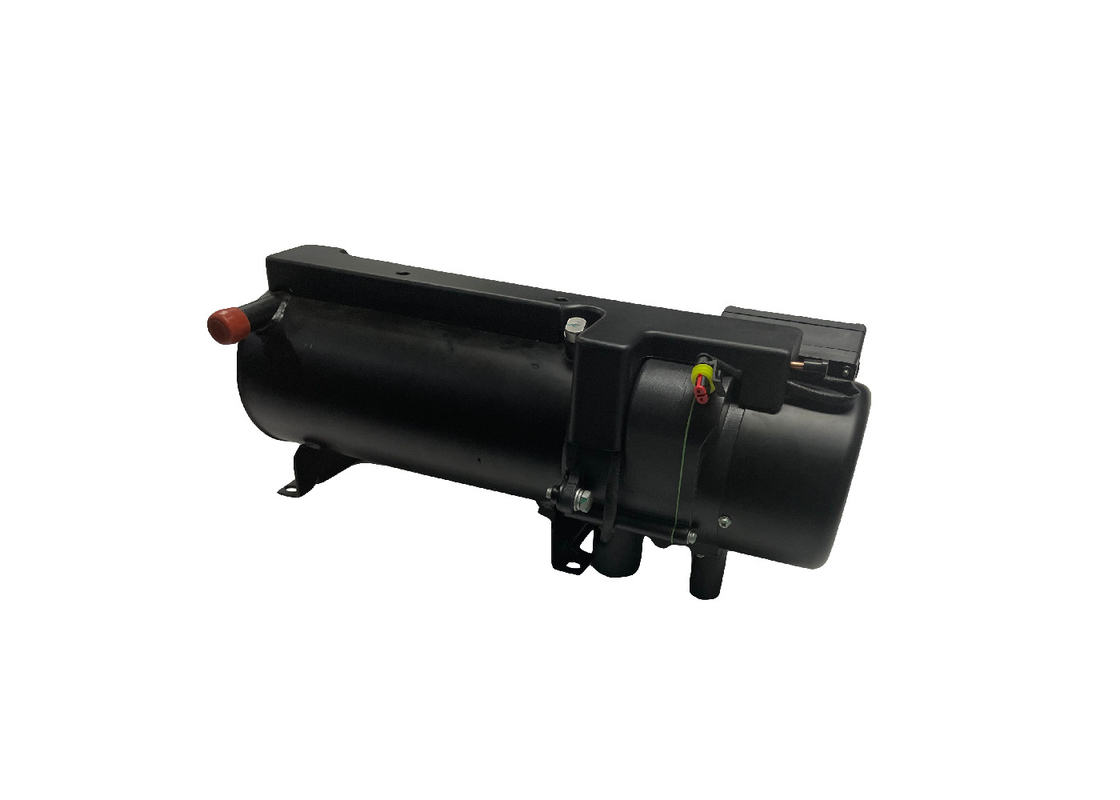

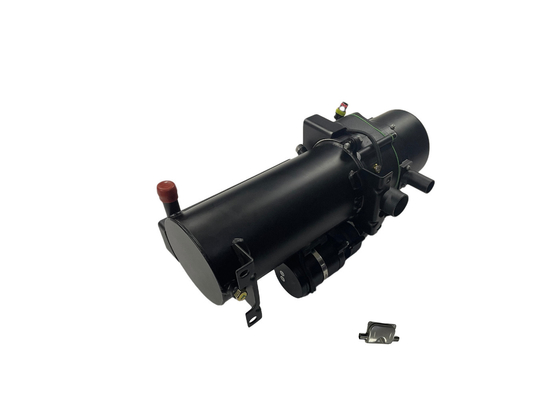

10kW 12 Volt Atv Engine Coolant Heater Van

I'm Online Chat Now

10kW 12 Volt Atv Engine Coolant Heater Van

10kW 12 Volt Atv Engine Coolant Heater Van
10kW 12 Volt Atv Engine Coolant Heater Van 10kW 12 Volt Atv Engine Coolant Heater Van

Large Image :  10kW 12 Volt Atv Engine Coolant Heater Van

Product Details:
Place of Origin: China
Brand Name: HLN
Certification: E-Mark
Model Number: 10kW Coolant Heater
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $ 360-370 set
Packaging Details: 52x33x29cm carton
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5000 per month

10kW 12 Volt Atv Engine Coolant Heater Van

Heating Capacity, Part Load/full Load (kW): 4.4/10.3 Fuel Consumption, Part Load/full Load (l/h): 0.51/1.29
Working Voltage (V): 12/24 Power Consumption, Part Load/full Load (W): 74.4/104.4
Weight (kg): 7 Outline Dimensions (L X W X H) (mm): 435X212X177
Operating Ambient Temperature (℃): -41 To +55 Storage Temperature (℃): -55 To +70
Key Word 1: 10kW Diesel Heater 12V Key Word 2: 10kW Parking Heater 12V
Key Word 3: 10kW Heater 12V Product: HLN Aquano 10kW Diesel Parking Heater 12V
High Light:

engine coolant heater van HLN


12 volt coolant heater HLN


atv coolant heater HLN

HLN Aquano 10k Coolant heater

HLN Aquano 10kW diesel parking heater 12V


The LCD Digital Controller

1. Timing start-up: the controller can be started up at a certain time once the time is pre-set.
2. Default diagnosis: once the heater suffers a default, what kind of default will be displayed automatically.
3. Status indication: show the current status of the heater.
4. Wireless control: the heater can be under the form of wireless remote control.


Heating capacity, part load/full load (kW) 4.4/10.3
Fuel consumption, part load/full load (l/h) 0.51/1.29
Working voltage (V) 12/24
Power consumption, part load/full load (W) 74.4/104.4
Weight (kg) 7
Outline dimensions (L x W x H) (mm) 435x212x177
Operating ambient temperature (℃) -41 to +55
Storage temperature (℃) -55 to +70

The HLN Aquano coolant heaters preheat the engines in cold weathers to reduce engine wear at the starting stage. At the initial engine starting stage, there is no lubricant on the engine cylinder bore and pistons. Low temperature causes lubricant to increase in viscosity, causing it hard to splash lubricant on to the engine cylinder or pistons. With HLN coolant heaters, the lubricant becomes warm before the engine starts, making the entire cylinder – piston system better lubricated and protected at the engine starting stage. Thus, engine wear reduces significantly and long-term vehicle maintenance cost also reduced.
HLN invests heavily on quality control to guarantee the best performance of the heaters.

  • The quality management department of the company has 17 full-time employees.
  • Clear responsibility for the quality management team
    • Incoming inspection of parts and components
    • Inspection of the first and last steps of the product process, plus in-situ inspection
    • 100% of final product inspection
    • Sampling inspection of finished packaging
    • Responsible for recording, organizing and analyzing unqualified products
    • Regular quality meetings with the entire team
    • Participate in supplier evaluation
  • The company has five laboratories for quality control, and the experimental items include:
    • Extreme temperature test
    • Vibration test
    • Salt spray test
    • Water splash test
    • EMC test
    • Product endurance test


Working Principle


You can set its running time in the range 10-120 min.When it is adjusted to 120min, press the right button again to set it to run for unlimited ∞ time. ①for example, when you set its running time to 30 min, heater will stop when it ran 30 min. ②If you set it to run for unlimited ∞ time, It automatically >80℃ Off, and <60℃ On, until you turn off it by yourself. It means keep the water temperature between 60℃ to 80℃.


  1. Are you a factory of a trading company?

        We are a professional manufacture for diesel heater with 40 years of expertise and experience.

  1. Can you make products with our brand

  Surely, we are welcome to cooperate with OEM service.

  1. Do you have quality warranty?

  Yes, we have quality warranty under normal condition. Please contact us for details

  1. Why will you choose us?

 Comparing with other manufacturers, the advantages of our Heater are experience, quality, capacity and price.

 Firstly, we have 40 years of experience and expertise to dominate this field. We are the earliest manufacturer in China.

 Secondly, the quality of our heater is the best in China and the top 3 in the world, and we are the only Chinese heater company in the OEM   equipment supplier field for world's top players such as FAW Group, Sany Group and Zoomlion.

 Thirdly, we produced and sold 200 thousand machines last year as the No.1 sales volume in China.

 Finally, our quality and technology is closed to Webasto and Eberspacher but the price of our product is much more reasonable, not only the   heater but also the accessories.
